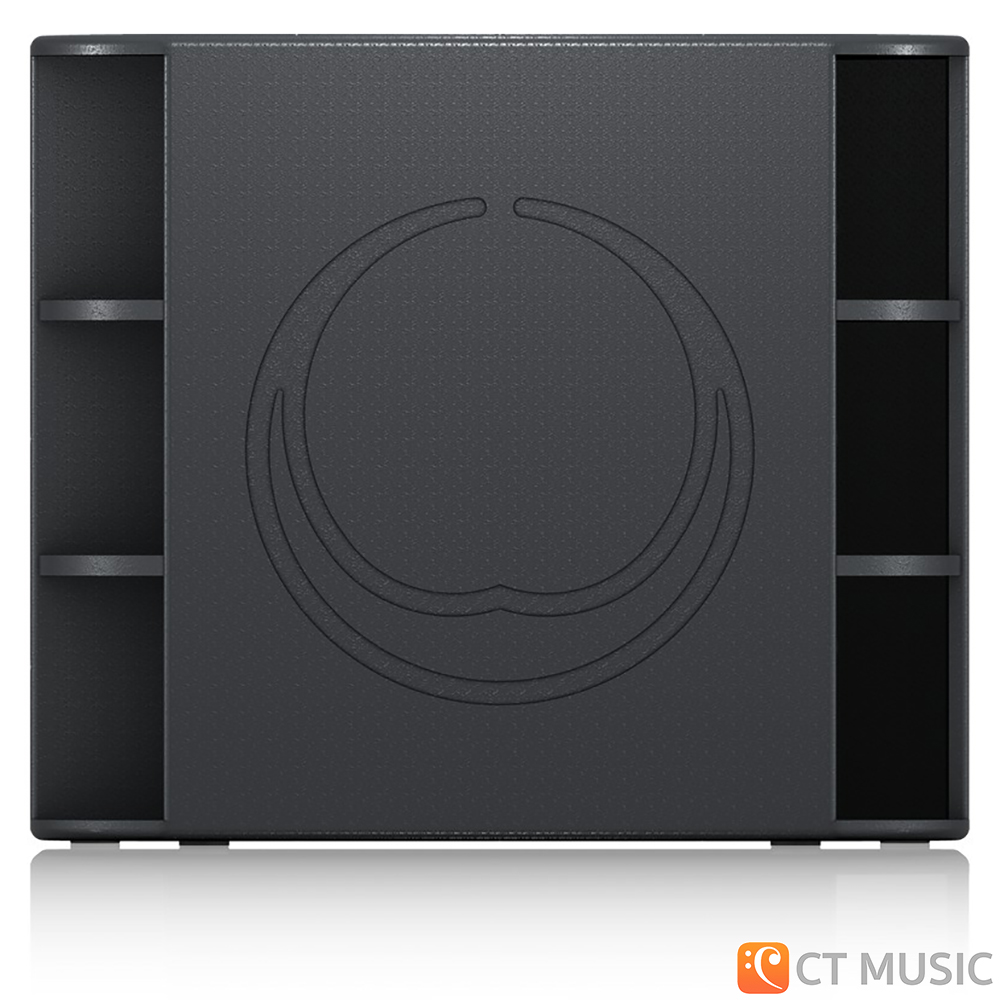

Turbosound M18B 2200 Watt 18″ Powered Subwoofer

Description... Turbosound M18B 2200 Watt 18″ Powered Subwoofer ลำโพงซับวูฟเฟอร์ Turbosound Milan M18B เป็นตู้ลำโพงซับเบสแบบมีกำลังขยายในตัว 2200 วัตต์ ขนาดดอกลำโพง 18″ with 4″ Voice Coil, Integrated Klark Teknik DSP, Class-D Amplifier The Milan M18B 2,200W Powered Bandpass Subwoofer from Turbosound is a Class D powered subwoofer capable of up to 2,200 watts of output power for increased loudness and bass response of any Milan system. It features an 18-inch speaker with a 4-inch voice coil and integrated Klark Teknik DSP. The M18B’s amplifier is designed to provide headroom for the long-excursion driver, allows the subwoofer to produce a wide dynamic range. A switchable 6dB boost allows you to increase the center frequency between 40 and 90Hz, providing an accentuated bass response. Features: Band pass powered subwoofer for portable PA and installation applications 2,200 Watt power featuring KLARK TEKNIK Class-D technology High excursion 18″ low frequency driver with 4″ voice coil and double suspension Bass boost and polarity switch for accurate low frequency system integration Birch plywood enclosure with hard wearing semi matt black paint finish Rugged powder coated perforated steel mesh grille 36 mm pole mount to support satellite speaker Plated steel castors with rubber tyres Specifications Components LF Driver: 1x 18″ (457 mm) Frequency Response 40 to 100 Hz ±3 dB 30 to150 Hz -10 dB Maximum SPL 134 dB, peak (half space) Boost Frequency 6 dB @ 40 to 90 Hz, Q = 1 Construction Birch plywood, screwed and glued Connectors 2x XLR F input connectors, wired pin 2 hot 2x XLR M Thru connectors, wired pin 2 hot IEC mains connector with integrated fuse holder Controls Level, polarity, boost, boost frequency Indicators Blue Power LED Green Signal LED Red Limit LED Amplifier Type: Class D Maximum Power Output: 2,200 W Input Sensitivity: 4 dBu @ center position for full rated power Input Impedance: 10 kΩ unbalanced, 20 kΩ balanced Amplifier Protection: Full short circuit, open circuit, thermal Mains Voltage USA/Canada: 100-120 V~ (T 12 A H 250 V) UK/Australia/Europe: 220-240 V~ (T 6.3 A H 250 V) China: 220-240 V~ (T 6.3 A H 250 V) Japan: 100-120 V~ (T 12 A H 250 V) Power Consumption 280 W @1/8 max power Dimensions (HxWxD) 23.2 x 25.2 x 20.9″ (590 x 640 x 530 mm) Weight 105.6 lb (48 kg) Packaging Info Package Weight 105.6 lb Box Dimensions (LxWxH) 30.0 x 29.0 x 26.0″ webmaster
