PROTIS 1™ Dual Jacks Module

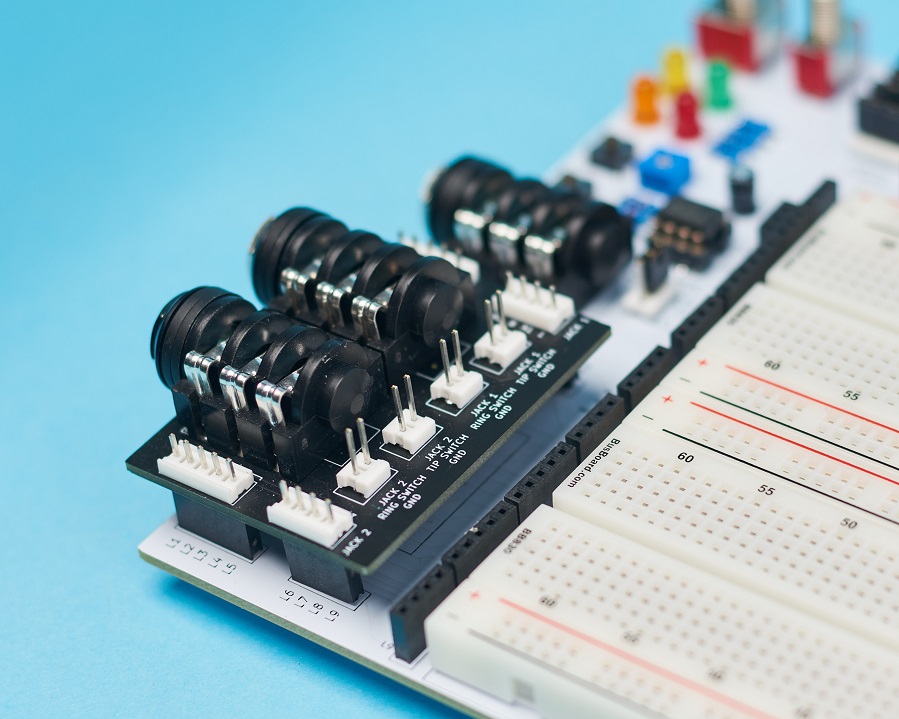

PROTIS 1™ Dual Jacks Module Board The Dual Jacks Module is a board that plugs into the PROTIS 1™ Guitar Effects Development Board, allowing the designer to expand the number of jacks available during the prototyping process. The PROTIS 1™ natively supports mono guitar input and output, and even has ring connections to support stereo applications. For some features like expression pedal or control voltage input, a third 1/4″ jack is required. The Dual Jacks module supplies two 1/4″ jacks for developing more advanced features. Expression pedal input, control voltage input, TRS MIDI, and multiple stereo inputs and outputs are just some of the applications that the dual jacks module allows. User Manual:  PROTIS 1™ Dual Jacks Module Board User Manual Got questions? I’ve got answers! Contact Stompbox Electronics using the Contact Form.
